Trusted Boot for Linux using Trusted Platform Module

Grub (GNU GRand Unified Bootloader) is a popular bootloader for Linux systems (e.g. Debian, Ubuntu and Arch). A bootloader is needed to load the Operating System from the hard disk (or CD or bootable USB or any other bootable media).

Grub 2 is a newer version of the original Grub and Trusted Grub 2 stems from Grub 2. It is used to startup Linux from encrypted disks using the Trusted Platform Module (TPM). The TPM is used to detect changes to the computer hardware and boot software. An unauthorized change will be detected and the computer will not startup (protecting the data on the encrypted disk).

We tinkered around with Trusted Grub 2 and the TPM and this is what we have working today:
  • Password authentication (the user must enter a password before the computer starts up).
  • Detection of (unauthorized) modification of the BIOS, disk partitions, boot loader, kernel etc.
  • Hard disk platform binding (the hard disk will not work in another computer preventing Evil Maid attacks).
  • Key escrow and recovery.
  • Full Disk Encryption using Linux standard dm-crypt with AES-NI support (when your CPU supports AES-NI there is virtually no performance loss).
These are screenshots from a client of one of our running configurations:

Trusted Grub 2 boot screen
User authentication (all OK)
Error during boot (TPM detected breach) and recovery

All is working now on the client side. We are looking into enterprise class key management but we lack the resources for that now. Please standby for more progress for this.


Capacitor Plague

Condensatoren zijn passieve electronische componenten die gebruikt worden om fluctuaties on de voedingsspanning op te vangen. Eigenlijk een soort mini-batterij die razendsnel oplaadt en dus ook razendsnel ontlaadt. Ze worden in alle elektronische apparaten gebruikt, van Apple Watch tot de voeding van je versterker. Condensatoren zorgen er dus voor dat je apparaat stabiel blijft werken zelfs als er opeens wat meer stroom wordt gevraagd of als je vriendin de magnetron aanzet (waardoor de 230V even een dipje krijgt).

Nu is er een probleem met een bepaald type condensator. De levensduur is korter dan verwacht. Hierdoor kan je apparaat al snel stuk gaan. Het probleem heet:"Capacitor Plague" en Wikipedia heeft er een uitgebreid artikel over.

Ik kwam (voor een prikkie natuurlijk) in het bezit van een Edimax ES-524G+ switch. De switch werkte prima maar voor de zekerheid toch even de kast opengeschroefd. Bij inspectie bleek dat er condensatoren op exploderen stonden en electroliet lekte:

Een lekkende en een 'bolle' condensator (gedemonteerd uit de switch)

De switch stond dus op het punt defect te raken. Dus bij een internet elektronicaboer 8 nieuwe condensatoren met dezelfde eigenschappen (1000µF/10V) gekocht. De oude condensatoren verwijderd en de nieuwe gesoldeerd en voila, deze switch kan weer jaren mee!

De nieuwe condensatoren zijn rood dus steken mooi af bij de rest:


Choose your favorite new Lenovo logo

New Lenovo logo
Alternative logo (inspired by Google)

Alternative logo (inspired by Heineken)

Note that the "smiling e" is an invention by Freddy Heineken himself when he created the new Heineken logo in 1949 (!). Still going strong:


McDonalds as Disaster Recovery location

McDonalds and similar (fastfood) restaurants provide everything you need for a Disaster Recovery office location. Furniture, food, drinks, HVAR, sanitation, cell phone coverage, parking space and, very important, free WiFi! So, for the immediate recovery of a disaster you and you colleagues can settle in the nearest fastfood restaurant and continue your work. However, the used WiFi connection can be "open" and unsecured!

Assuming that your IT infrastructure is still available, you can use McDonalds' WiFi and your existing VPN solution to connect to corporate applications and data. Maybe many of your colleagues are not using VPN (often) and they might be struggling to set up a VPN connection. Or your company might have a policy that you always have a VPN session to the datacenter and use an "Always Tunnel" configuration.

In these cases you can configure an "always on VPN" network configuration with DirectAccess (Windows) or OpenVPN (Open Source) or with another VPN solution. But how do you prevent that VPN credentials are stolen from PCs that are all or not connected to the corporate network? Answer: use a Trusted Platform Module (TPM) to store and protect the VPN credential. You can create a VPN Digital Certificate and use the TPM to create and protect that credential with free or licensed TPM middleware.

This "always on VPN" configuration is fully transparent to user, gives the company full control over the data streams from/to corporate client PCs even when they are out in the field, and it is impossible to copy or steal the VPN credential from the PC. Consider that using and managing the TPM can be fully automated ("Zero Touch") and with a very low investment you have the best security and Identity Management protection that is available on the market today (and tomorrow!).

For more information about TPMs and how to deploy them for ultra secure VPN and other Identity Management solutions:


Unclutter Start Menu from Office 2016 shortcuts

When you installed a Microsoft Office version in the old days, a Start Menu "Microsoft Office xxxx" folder was created with the Office application shorcuts. However Office 2016 creates shortcuts directly in the Start Menu and clutters up the Start Menu (due to alphabetic order):

With 2 commands/it is possible to move all Microsoft Office 2016 links to the "Microsoft Office 2016" group in the Start Menu:

md "C:\ProgramData\Microsoft\Windows\Start Menu\Programs\Microsoft Office 2016"
move "C:\ProgramData\Microsoft\Windows\Start Menu\Programs\*2016.lnk" "C:\ProgramData\Microsoft\Windows\Start Menu\Programs\Microsoft Office 2016\"

Execute the commands with elevated (Administrator) privileges and the Start Menu is clean and tidy and all Office shortcuts are where they belong:


Document scan with VBSscript and WIA

Windows Image Acquisition (WIA) is the still image acquisition platform in the Windows family of operating systems

In 2007 I published a VBscript that was used to create a BMP file from a document scan. That WIA method is obsolete so I updated the script to this:


'--- dim objects...
dim wsh, fso, objWIAdialog, objImage, imgFilename
set wsh=CreateObject("")

set fso=CreateObject("scripting.filesystemobject")
set objWIAdialog = CreateObject("WIA.CommonDialog")

'--- Start the Scanner dialog box, where a scanner can be selected...
set objImage = objWIADialog.ShowAcquireImage

'--- Save and show the scan if the scan was successful...

If Not objImage Is Nothing Then
fso.GetSpecialFolder(2) & "\Scan2BMP" &  Int((999999 - 100000 + 1) * Rnd + 100000) & ".bmp"

    wscript.echo "Scan stored as BMP in file: " & imgFilename
    objImage.SaveFile imgFilename
End if

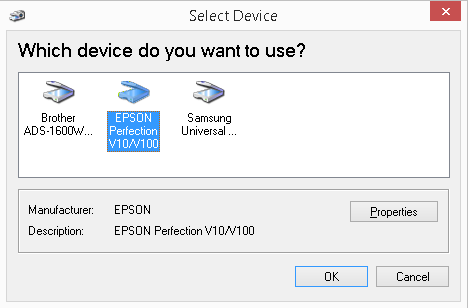

The script will start a WIA dialog that let you select the scanner and set scan properties.

After the scan, the BMP file started in the default BMP viewer.


TLD filter in hMailserver 5

As I wrote in a previous post hMailserver can be tweaked. In this post I will show a simple TLD filter. This filter is used to block emails from certain Top Level Domains, especially from countries that host many attackers.

Add this code to the hMailserver 'EventHandlers.vbs' script:

Sub OnSMTPData(oClient, oMessage)

'--- Space before the first and after the last country name are required (see TK's comment)...
 Dim TLD

  TLD=Mid(oMessage.FromAddress,Instr(oMessage.FromAddress,".") + 1)
    if Instr(Blacklist,uCase(TLD))>0 then
      Eventlog.Write("OnSMTPdata: TLD in Blacklist " & oMessage.FromAddress & ". 542 Rejected" )
    End if
 End Sub

That's all! Happy emailing!


'Syncthing' Windows install script

Pulse was a (not continued) fork of Syncthing ( I spend a couple of posts about installing and configuring Pulse which are more less covering Syncthing too.

One thing has not been fixed for the Windows version of Syncthing: computer resources when Syncthing is active. I have described how to mitigate this but the next script does it all for you. It will (re-)install the Syncthing Windows service with an affinity for a single CPU and at a low priority.

The script requires that NSSM ( x86 or x64 executable is installed in the same folder as the script.


net sessions >nul 2>nul
if %errorlevel% NEQ 0 (
    echo *** This script requires Admin privs. Exiting...
    goto :EOF

net stop syncthing
sc delete syncthing
taskkill /f /im syncthing.exe

md "%ProgramData%\syncthing" >nul 2>nul

nssm install syncthing "%ProgramFiles%\syncthing\syncthing.exe"
nssm set syncthing Application     "%ProgramFiles%\syncthing\syncthing.exe"
nssm set syncthing AppDirectory    "%ProgramFiles%\syncthing"
nssm set syncthing AppParameters "-home=%ProgramData%\syncthing -logfile=%ProgramData%\syncthing\syncthing.log -no-console -no-browser"
nssm set syncthing AppPriority IDLE_PRIORITY_CLASS

::--- Assign one of the %NUMBER_OF_PROCESSORS% cores to Syncthing service (but exclude core #0)...
set /A a="%RANDOM% %% (%NUMBER_OF_PROCESSORS%-1)" + 1
nssm set syncthing AppAffinity %a%

net start syncthing
ping -n 11 >nul

Once the service is (re-installed) you can check the Windows task manager what Syncthing is consuming on CPU resources:


Random numbers created with a TPM (test yourself!)

Random numbers are the base of many cryptographic functions. E.g. they are used for the creation of a new identity or when a secure connection is set up between a client and a server. When the randomness is predictable, so not as random as you expect, the protection of the cryptographic functions are flawed.

The Trusted Platform Module (TPM) has a build-in Random Number Generator (RNG):

Trusted Platform Block schema

I did some research to the quality of the random numbers as produced by the TPM chip. To make a long story short, the quality (randomness) of TPM based random numbers is much better than random number generators from Operating Systems. This means that the level of protection, when TPM based random numbers are used, is better.

How random is my random data?

This was a pretty hard question until Karl Pearson defined the “Chi Square test” in the early 20th century. The Chi square test takes the count that a certain number is occurring and calculates the accuracy against the expected random number frequency.
Example: if you throw a dice 60 times you expect that each side of the dice is represented 10 times. So, 10 times the 1, 10 times the 2 until 10 times the 6. This is the theory. In practice there will be a deviation of these numbers.

The Chi square test is able to calculate if the returned values from the dices are still random (enough) or if you should suspect an unbalanced dice that favor a particular side of the dice (see this link for a YouTube movie that explains the Chi square test with dice).
When we apply the Chi square test on random data, the test can show that certain random data is not as random as we expected. In other words, when “bad” random data is used in computations, it might be possible for an attacker to predict (a portion of the) random data and break the security.
Since the Chi square test is in the statistics domain, we have to make assumptions to define a “bad” or “good” RNG. In this case we assume that when the “Distribution” value is around 256 and the “Exceed” value is between 10% and 90%, the RNG is providing “good” random data. These assumptions are based on the theory as described by Ronald Knuth in is programmers reference books: “The Art of Computer Programming” (Third edition, Volume 2, Chapter 3.3.1). See also links below on more information around the Chi square test.

DIY TPM random number testing

You do not have to believe me. You can check for your self! The only thing you need is a computer with a TPM and a small program that produces random numbers with the TPM.

Disclaimer: the download of 'tpmrng' is free but the use of 'tpmrng' is (of course) at your own risk.

Step 1: download 'tpmrng' here (in English or Deutsch)
Step 2: unzip somewhere on your harddisk
Step 3: execute (user mode, default amount of random data: 1MB)

You should see something like this:

The 'tpmrng' application displays the state of the TPM (so also a handy tool to quickly check if your TPM is ready for use!), the RNG buffer size (which is different per TPM chip manufacturer) and the performance of the RNG.

You can use the file 'random.bin' for testing with the Chi square tests.

Verify randomness with 'Ent'

The 'Ent' utility analyzes random numbers. Download Ent here (link) and use Ent like this:

Explanation of Ent's tests:


(The reader may also check the Ent website for a comprehensive explanation of the Ent tests.)



A good random number gives all the 256 possibilities that are possible from the 8 bits. If the RNG only gives the 26 letters of the alphabet (see ‘Compression’) only 4.7 bits out of 8 bits are used. The entropy for the 26 letters of the alphabet is therefore: 4.7.
A Good RNG: The Entropy value must be (or very close to) 8.


Computers calculate with ‘byte’. A byte consists of 8 ‘bits’. A bit is a memory location that can have 2 values: 0 (zero) or 1 (one). With some math we can calculate that one byte can have the number of values (2) to power of positions (8): 28 = 256 values (or characters).
Consider the alphabet that consists of 26 characters. It is clear that we do not have to use all the 8 bits to present the 26 letters of the alphabet. We can calculate the amount of bits by the division of the logarithm of characters (26) to the logarithm of values (2) : log(26) / log(2) = 4.7 bits. Since the result is a fraction, we need actually 5 bits (rounded up) to represent all the letters of the alphabet. Using 5 bits gives some “spare” characters because number of values (2) to the power of positions (5) is 25 = 32 characters. Compression programs, like ZIP,7z or RAR use this “spare” to compress data. E.g. imagine a 1000 byte document with only letters of the alphabet, a compression program can reduce the size from 1000 to 26/256*1000=101 bytes. A reduction of almost 90%.
A Good RNG: Optimum compression should be (very close to) 0%

Chi Square test

The Chi Square test is extremely sensitive for ‘un-random’ RNGs. We will use the Chi Square test for deeper analyses of the TPM and the Windows and Linux RNGs. See links below for explanations of the Chi square test.
A Good RNG: The Chi Square distribution value must be around 256 and the exceed value must be in the range 10-90%.


Calculating the average is the easiest of all tests. You add all the random bytes and divide them to the amount of bytes. One byte can have a value between 0 and 255 se the average should be 255/2 = 127.5
 A Good RNG: has a value (very close to) 127.5

Monte Carlo value of Pi

This tests takes the random numbers for an x-value and y-value and places a dot in an x-y quadrant.
Imagine a very large number of dots. The relation of dots that are inside and outside of the circle is dependent on the surface inside of the circle and the combined 4 areas outside of the circle.  If the square’s surface = 1 (x=1 and y=1) than the circle has a surface of π * r2 = 3.14159 * 0.52=0.785398. This means that 785398 dots are inside the circle and 1000000-785398=214602 dots in the 4 areas outside of the circle.
The Monte Carlo value of Pi uses this fact to calculate the number inside and outside of the circle and derive the number Pi from the total number of random data.
A Good RNG: The value for the Monte Carlo value of Pi must be (very close) to: 3.14159265359

Serial correlation

If we use a file with random data that is sequenced 0-255-1-254-2-253… etc., it is clear that there is a relation between the sequence of numbers. This Serial correlation test calculates that relationship between consecutive random bytes.
A Good RNG: both values should be (very close) to 0

TPM random numbers compared with those from Windows and Linux

To show the differences in RNGs from the TPM, Windows and Linux, we created 10 files of 1MB of data by each RNG and we analyzed the data with the Chi square test. The next table gives the results that were collected from a TPM, Windows and Linux RNG:

Disclaimer: Since everything is “random”, it can happen that a single test fails. E.g. see the one occasion where the TPM random data would be not good enough (91,59%). This means that for scientific proof of the quality of the randomness, the tests must be applied on much more data and with different analytic methods. In this case we use a “lightweight” method to support the statements around the quality of the RNGs in this article.

Conclusion TPM based Random Numbers Generation

The table shows that the TPM is producing “better” random data than Windows and Linux RNGs. The Windows and Linux random data are “less random” (see the “Exceed” values outside 10-90%). This does not imply that the Windows and Linux random numbers are not random enough for day-by-day computations. It just shows that the random numbers from the TPM are “more random" and provide more trust and security in the cryptographic functions that are executed with TPMs.
